PLC Splitter Buy Online | Match LB-Link
BL-PLC-LGX-8-SCPC

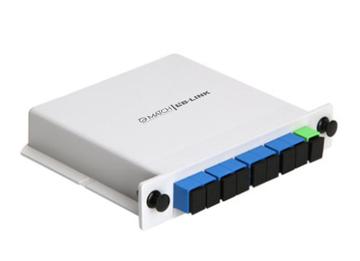

Our PLC Splitter is based on planar Lightwave circuit technology and precision aligning process, it can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN.
Our PLC Splitter offers unmatched optical performance, high stability and high reliability.
Features
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
Application
1. Access Network
2.Telecom/CATV
3. Active device termination
4. Local Area Networks (LANs)
5. Metro
6. Test equipment
7. Data processing network
8. Wide Area Networks (WANs)
9. FTTX
Specifications
|
Parameter |
Specification |
|
Operating Wavelength (nm) |
1260 ~ 1650 |
|
Type |
1x8 |
|
Insertion Loss (dB) Max. * |
<10.5 |
|
Uniformity (dB) Max.* |
<1.0 |
|
PDL(dB)Max.* |
<0.2 |
|
Directivity (dB) |
≥55 |
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
|
Operating Temperature (°C) |
-5~ +75 |
|
Storage Temperature (°C) |
-40 ~ +85 |
|
Fiber length |
1m or custom length |
|
Fiber Type |
Corning SMF-28e fiber |
|
Connector Type |
Custom specified |
|
Power Handling (mW) |
300 |
