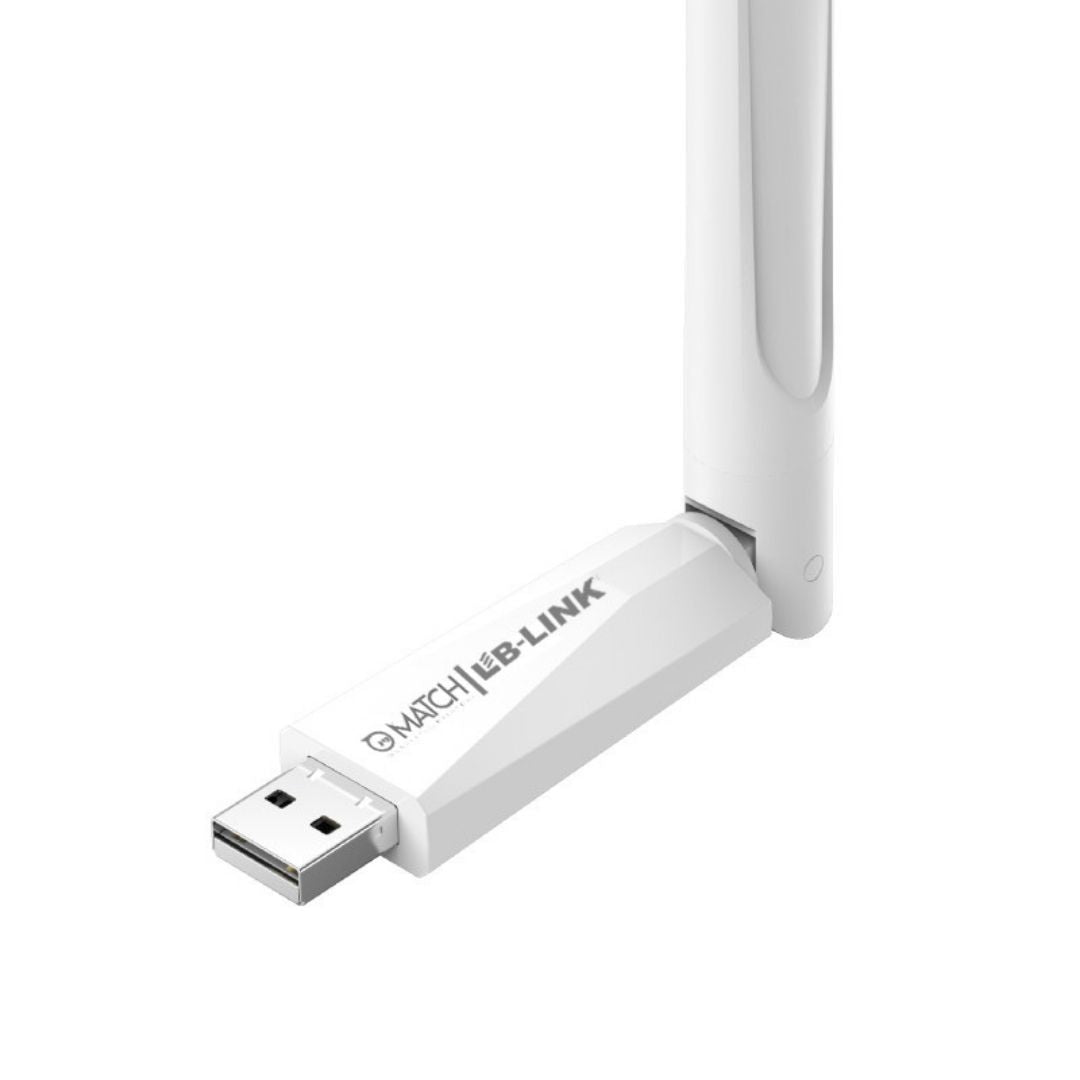

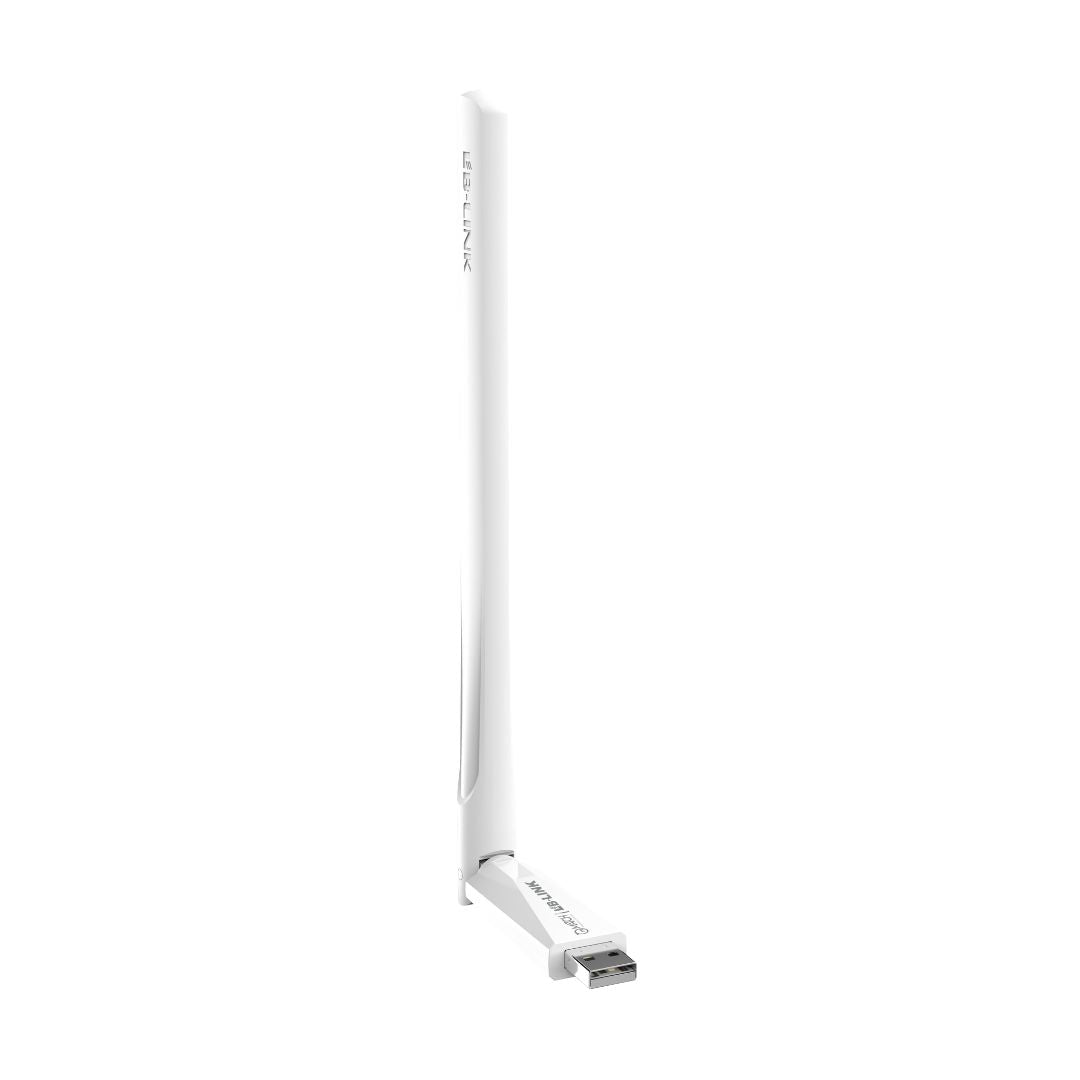

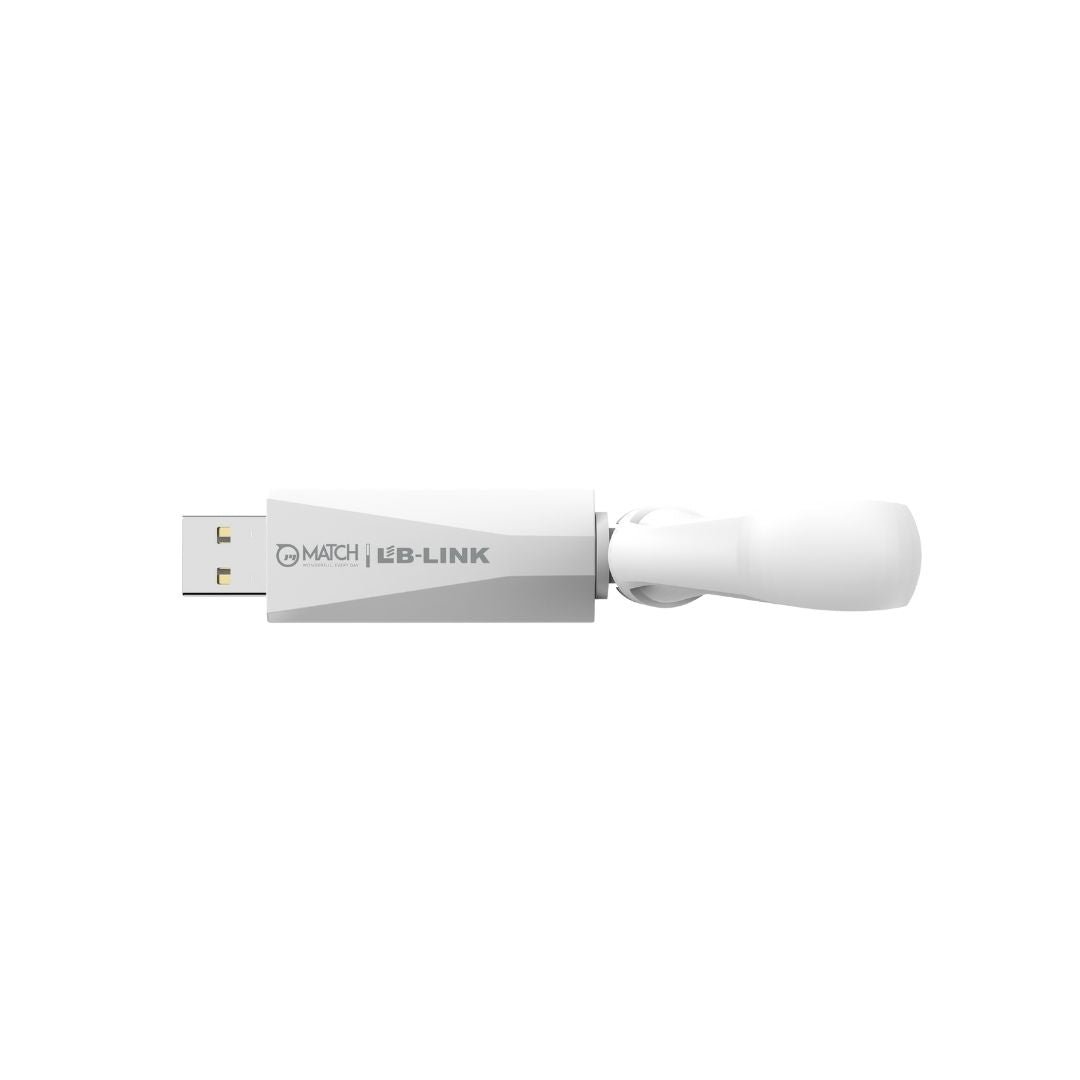

AC650 High Gain Wireless Dual-Band USB Adapter
Wi-Fi Adapter-AC650 Dual-Band Adapter for PC | Match LB-Link
BL-WDN650A
WiFi Adapter- AC650 Dual-Band USB Adapter Supports MU-MIMO technology and advanced securities. 802.11 ac technology provides 650Mbps wireless speed.
MAIN FEATURES:
Ultra-Fast Speed: This WiFi connector has 802.11 ac technology. This technology enables it to transfer 650Mbps wireless speed. A tiny way to get a speedy next-generation Wi-Fi connection.
Latest Technology: This dual-band adapter complies with IEEE 802.11 a/b/g/n/ac standards.
High Coverage: 6dbi high gain antenna of 650Mbps wifi connector provides wide coverage. So you can access the internet from any corner of your home or office.
Dual-Band: It also provides Selectable dual-band connections for lag-free HD video streaming and gaming.
Set up and Installation: There is no need for CD for the set-up. You can download the free driver and start playing.
Signal Through the Wall: Signals of this wi-fi adapter penetrate the wall and provide the same network speed.
Advanced Security: Supports 64/128 WEP, WPA, PA2/WPA- PSK/WPA2-PSK (TKIP/AES).
Soft AP Wi-Fi Transmitter: SoftAP is the abbreviation for “software-enabled access point”. The headless device initiates a SoftAP Wi-Fi point. The user can download the LB-Link app to a smartphone, then the app using a system like Android or iOS connects to the SoftAP point, or guides the user to connect the phone manually.
Technical Specifications:
| Standards | 2.4GHz:IEEE 802.11n |
| IEEE 802.11g, IEEE 802.11b | |
| 5.0GHz: IEEE 802.11ac | |
| IEEE 802.11n, IEEE 802.11a | |
| Port Type | USB 2.0 |
| Frequency Range | 2.4-2.4835GHz, 5.15~5.84 GHz |
| Channels | 2.5G: 1-13, 5G:36-140, 149-165 |
| Modulations | OFDM/CCK/16-QAM/ 64-QAM/256-QAM |
| Receiver Sensitivity (without antenna) |
2.4G |
| 1M: -95dBm@8% PER | |
| 6M: -90dBm@10% PER | |
| 11M: -86dBm@8% PER | |
| 15M: -84dBm@10% PER | |
| 54M: -73dBm@10% PER | |
| 150M: -68dBm@10% PER5G | |
| 6M: -90dBm@10% PER | |
| 15M: -88dBm@8% PER | |
| 32.5M: -82dBm@10% PER | |
| 54M: -70dBm@10% PER | |
| 150M: -67dBm@10% PER | |
| 433.3M: -58dBm@10% PER | |
| Supported Operating Systems |
Windows 10 (32/64bits), Windows 8.1 (32/64bits), |
| Windows 8 (32/64bits) | |
| Windows 7 (32/64bits), Windows XP (32/64bits) |
|
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
|
| Environment | Storage Temperature: -20°C to 70°C (-40°F to 158°F) |
| Operating Humidity:10% ~90% RH | |
| ` Non-condensing | |
| Storage Humidity: 5% to 95% RH, Non-condensing |
