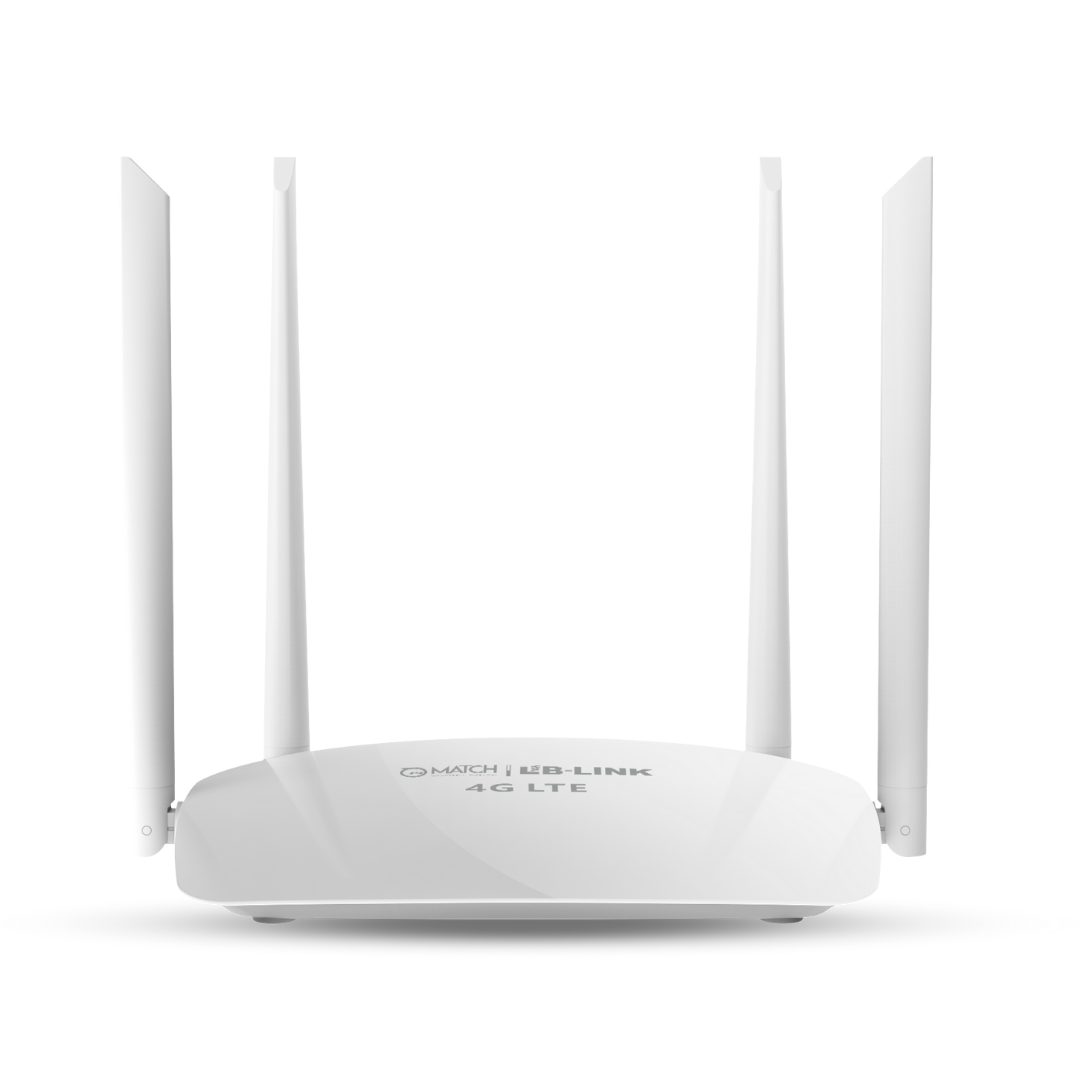

4G LTE Multi Wan Wi-Fi Router
Match LB-Link 4G Router | 4G Router with Sim Card and WAN Port
BL- CPE450H
Match LB-Link 4G router is a 2 in One 4G router with sim card + WAN port (auto-switch). 300mbps speed in 32 devices. 5000sq Ft. coverage with 4*5dBi high-gain antennas.
Just insert your sim and rock on. It is based on the American Platform 4G chipset which makes it more stable and reliable.
MAIN FEATURES:
Compatibility: This Match LB-Link 4G router is Compatible with the majority of mobile operators and supports 4G/3G LTE:-FDD B1/B3/B5/B8. It supports all SIMs and ISPs like Jio, Airtel, VI, BSNL, etc. So, you can connect to the internet without changing your sim card.
LTE Support: This 4g wi-fi router supports various types of LTE & WCDMA. LTE-TDD: B34/B39/B40/B41 WCDMA:B1/B5/B8. It is fully suitable for your need.
Wide-Coverage: This CPE router has 2.4GHz and 4*5 dBi High gain antennas to provide wide Wi-Fi Coverage of 5000sq Ft. There is no need to be close to the router, you can access its swift speed from every corner of your house as well. This feature makes it the perfect match for offices and homes.
Fast Speed: Its single-band (2.4G + 4G) servers expeditious speed up to 300Mbps which enhances your surfing, gaming, webinars, and conferencing experiences.
Maximum Devices: 32 Devices can enjoy this hasty speed simultaneously. Hence, Match LB-Link 4G Router is the perfect match for your home as well as office.
Easy to Expand: Match LB-Link 4g router with sim card is built with WLAN functions which make it easy to expand a wireless network.
Safety Measures: This 4g router takes care of your privacy and prevents loiter networks and also ensures multi-wireless safety.
Management Support: The 4G LTE Multi-WAN router supports web page management and network traffic statistics. Now keep an eye on who is accessing your wifi and control your users.
Installation: Match LB-Link smart router can be installed quickly and easily. No prior technical knowledge is required to install the router. Just insert your SIM/USIM card and share your 4G LTE or 3G Internet connection through a high-speed wireless network
Remote Control: This 4G router supports LB-Link APP remote management. Just install the application and alter the settings as per your needs.
CPU | MT7628DA/580MHz |
DRAM/FLASH | 64MB DDR2/8M SPI |

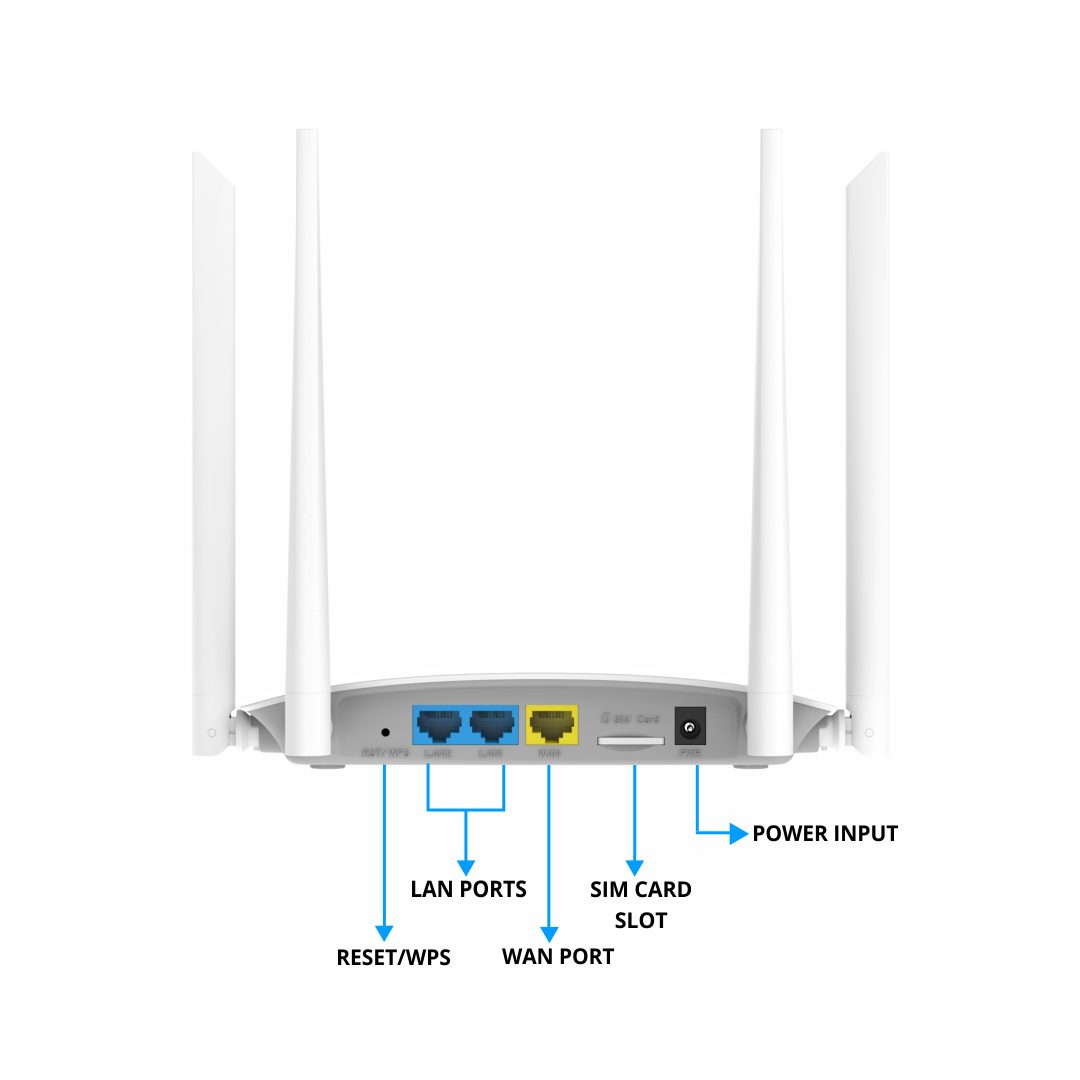

Interface | 2x RJ45 10M/100M LAN Ethernet interfaces, |
1 x RJ45 10M/100M WAN Ethernet interfaces | |
1 x Reset, 1 x Power jack 12V 1A, 1 x SIM (Standard) | |
Antenna | 2.4G. 802.11N. 2T2R 4G. 2T2R |
Gain | 2.4G 5dBi 4G1-4Dbi |
Range | 2.4-2.4835GHZ |
LED | SYS |
Transmit Power | 11b : 1/2/5.5/11Mbps, |
11g : 6/9/12/18/24/36/48/54Mbps, | |
11n : 300Mbps MAX | |
Spread-spectrum technique | DSSS |
Data Encryption | WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
Modulation type | 11b : CCK, QPSK, BPSK, 11g : OFDM, 11n : QPSK, BPSK,16-QAM, 64-QAM |
Media access protocol | CAMA/CA with ACK |
RF Power | 11b : 18±1.5dBm@1-, 11Mbps 11g : 16±,1.5dBm@6-54Mbps, |
11n:15±1.5dBm@6-54Mbps | |
Receiver Sensitivity | 11b:-95dBm@1Mbps,-89dbm@11Mbps, |
11g: -92dBm@6Mbps,-72dbm@54Mbps, | |
11n: -85dBm@MCS0,,-70dbm@MCS7, | |
86dBm@MCS8,-68dbm@MCS15,, | |
4G Modulation type /GNSS | LTE CAT4 (compatible with LCC/PCIE/M2 package) |
GNSS function | GPS, GLONASS, BeiDou / Compass, Galileo, QZSS |
4G module RF Power | Class 4 (33dBm±2dB) for GSM850 |
Class 4 (33dBm±2dB) for EGSM900 | |
Class 1 (30dBm±2dB) for DCS1800 | |
Class 1 (30dBm±2dB) for PCS1900 | |
Class E2 (27dBm±3dB) for GSM850 8-PSK | |
Class E2 (27dBm±3dB) for EGSM900 8-PSK | |
Class E2 (26dBm±3dB) for DCS1800 8-PSK | |
Class E2 (26dBm±3dB) for PCS1900 8-PSK | |
Class 3 (24dBm+1/-3dB) for WCDMA bands | |
LTE Character | Support 3GPP R8 non-CA cat 4 FDD |
Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO | |
LTD-FDD: DL 150Mbps(MAX) | |
UL 50Mbps(MAX) | |
TD-SCDMA Character | Support CCSA Release 3 TD-SCDMA |
DL(MAX) 4.2Mbps | |
UL(MAX)2.2Mbps | |
Software Specifications | |
Software function | Access mode |
- Router mode, 4G mode | |
Basic setting | |
- WAN setting, LAN setting, Mac clone, DNS, 2.4GWIFI setting | |
- 2.4G guest network setting, 2.4G channel setting | |
- 2.4G signal strength setting, 2.4G channel optimization | |
Advance setting | |
- Black list setting, Bonding list, Children protection list | |
- Web blacklist, Modify administrator password | |
- QoS |
