8 Port 10/100 Ethernet Switch

8 Port 10/100 Ethernet Switch

Rs. 650.00
Rs. 1,399.00 Rs. 650.00
Sale Sold out
Tax included. Shipping calculated at checkout.

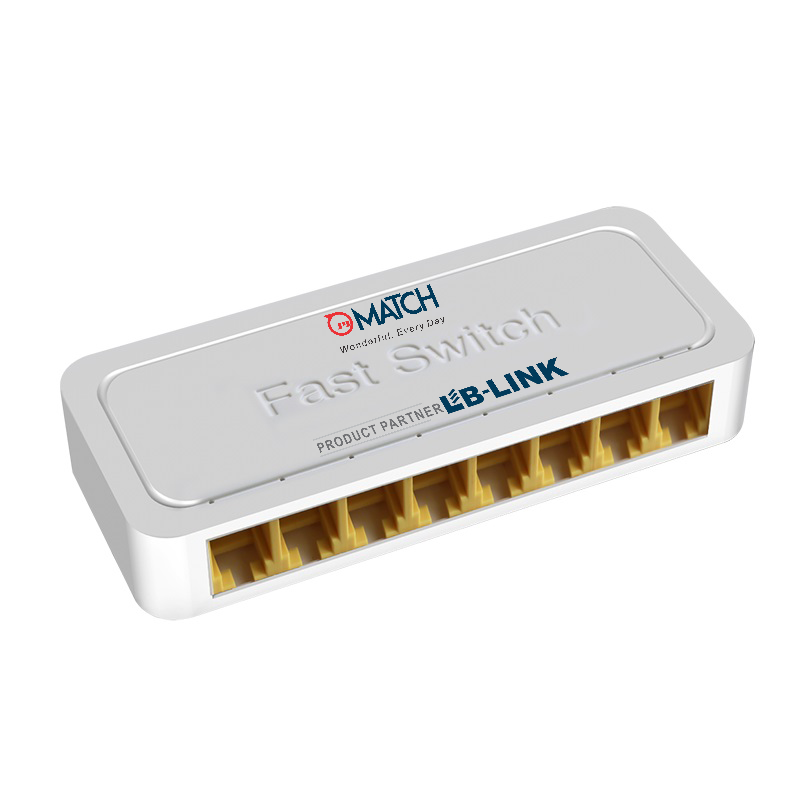

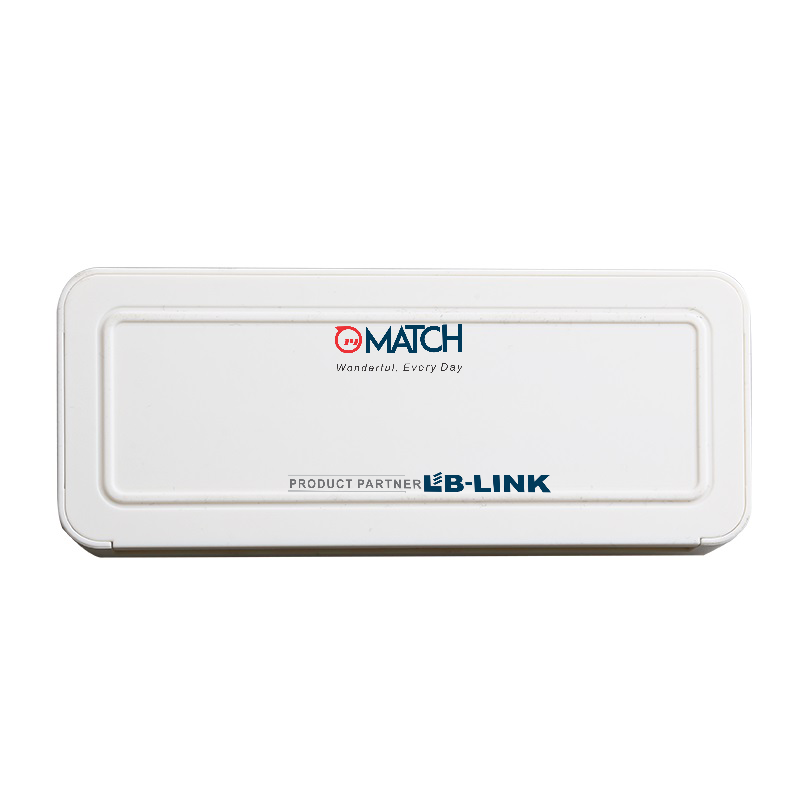

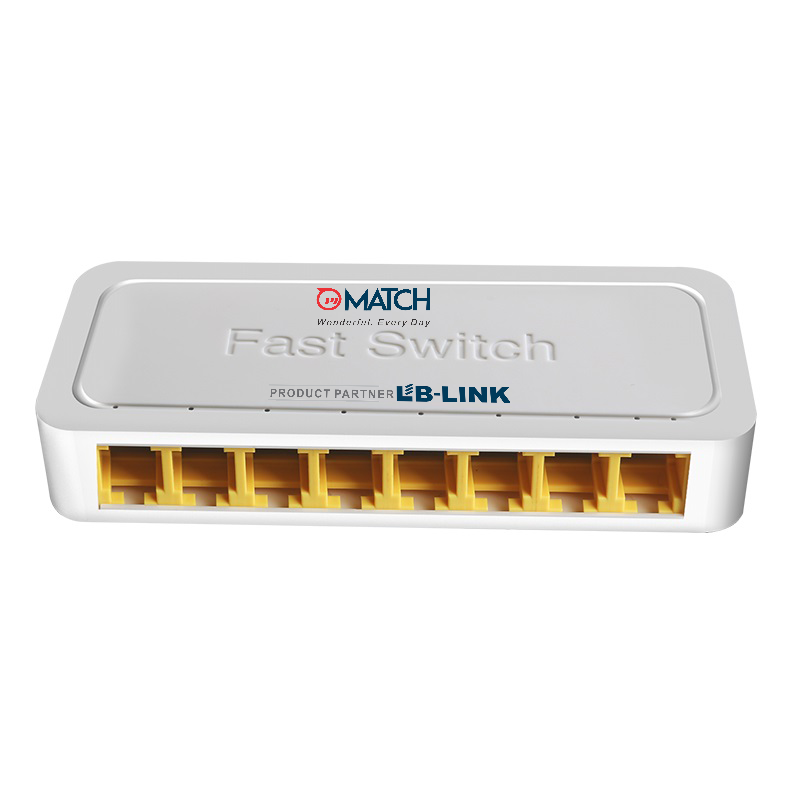

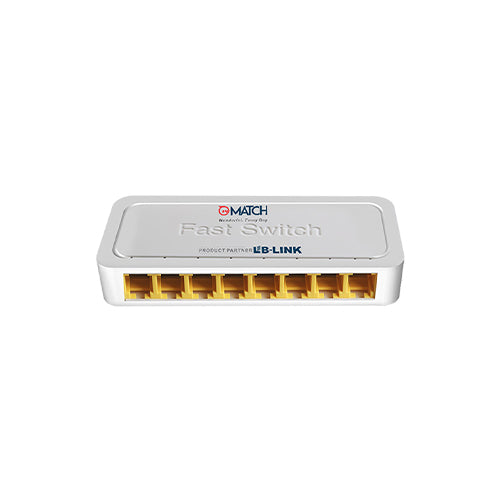

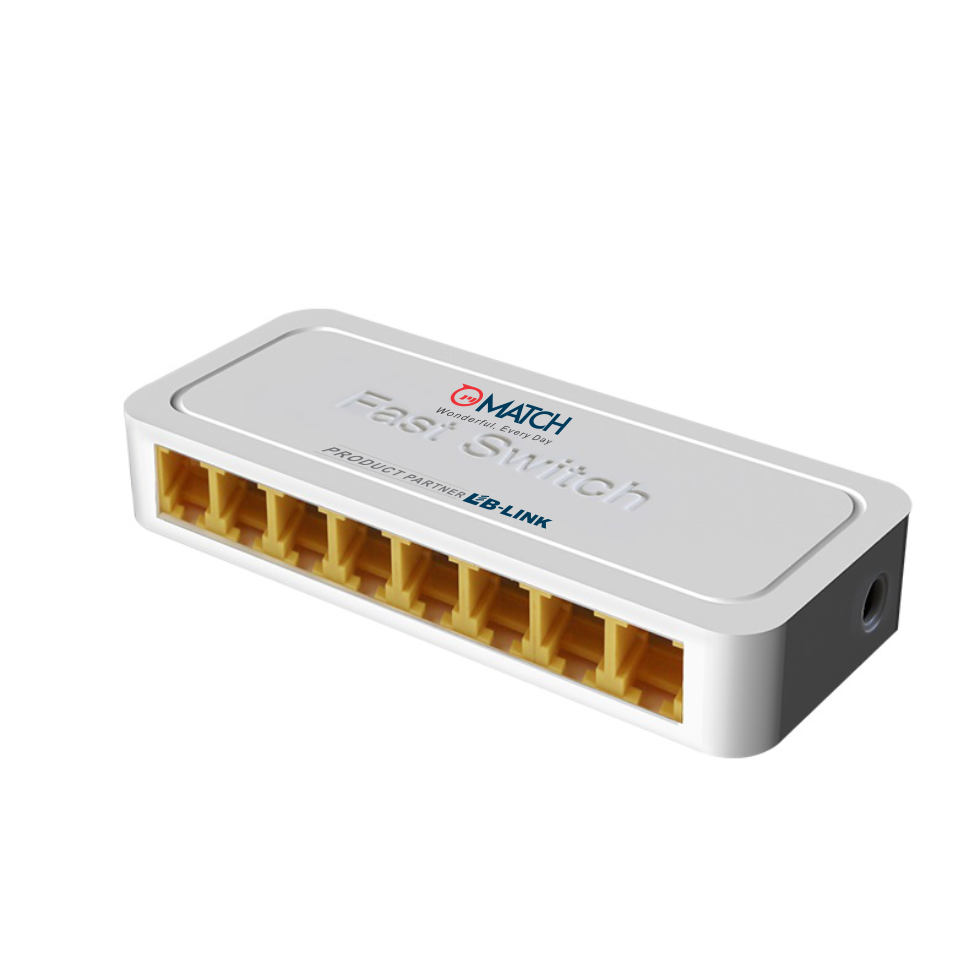

MATCH LB-Link 8 Port Ethernet Switch

(BL-SF801)

This Match LB-Link 8 port Ethernet switch is a 10/100Mbps non-management switch, which provides 8 10/100Mbps RJ45 ports and supports wire-speed forwarding of all ports. It supports IEEE802.3az energy-efficient Ethernet (EEE) technology, IEEE802.3x full-duplex flow control function and half-duplex backpressure flow control function.

Match LB-Link 8 Port ethernet switch has a durable design, quiet operation, simple and convenient use, no configuration, plug and play, very suitable for the small office, home office (SoHo), and small and medium business (SMB) environments.

Features:

  • Comply with IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3az Ethernet standards;
  • Support 8 x10/100Mbps Auto-negotiation RJ45 ports, support auto MDI/MDIX;
  • Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode;
  • Supports IEEE802.3az energy-efficient Ethernet (EEE) technology;
  • 1K entry MAC address table of the switch with auto-learning and auto-ageing;
  • LED indicators for monitoring Port Link / Activity;
  • External power supply, exquisite design, suitable for desktop installation and use
  • Adopt the store-forwarding mode
  • Switching Capacity 1.6Gbps



Model Name BL-SF801
Chipset IP178G
Standards and Protocols IEEE802.3, EEE802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3a
Interface 8 x 10/100Mbps Auto-Negotiation ports
Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
Transfer Method Store-and-Forward
MAC Address Table 1K
Switching Capacity 1.6Gbps
Packet Forwarding Rate 1.19Mbps
Indicators
 Per Device Power
Per Port Link/Activity
Power Supply DC: 5V, 0.5A External Power
Power Consumption Maximum: 1.7W (220V/50Hz)
Dimensions 130.7*52.3*20mm
Environment Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
