8 Port POE Switch
8 Port PoE Switch with 2 Uplink Ports | Match LB-Link
BL- SF8002
8 Port PoE Switch with 2 Uplink Ports of Match LB-Link. This PoE switch saves power cables and costs. Get reliable and authentic data transmission. Easy Installation.
KEY FEATURES
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x flow control protects against lost packets for reliable data transmission
- Simple Plug and Play installation

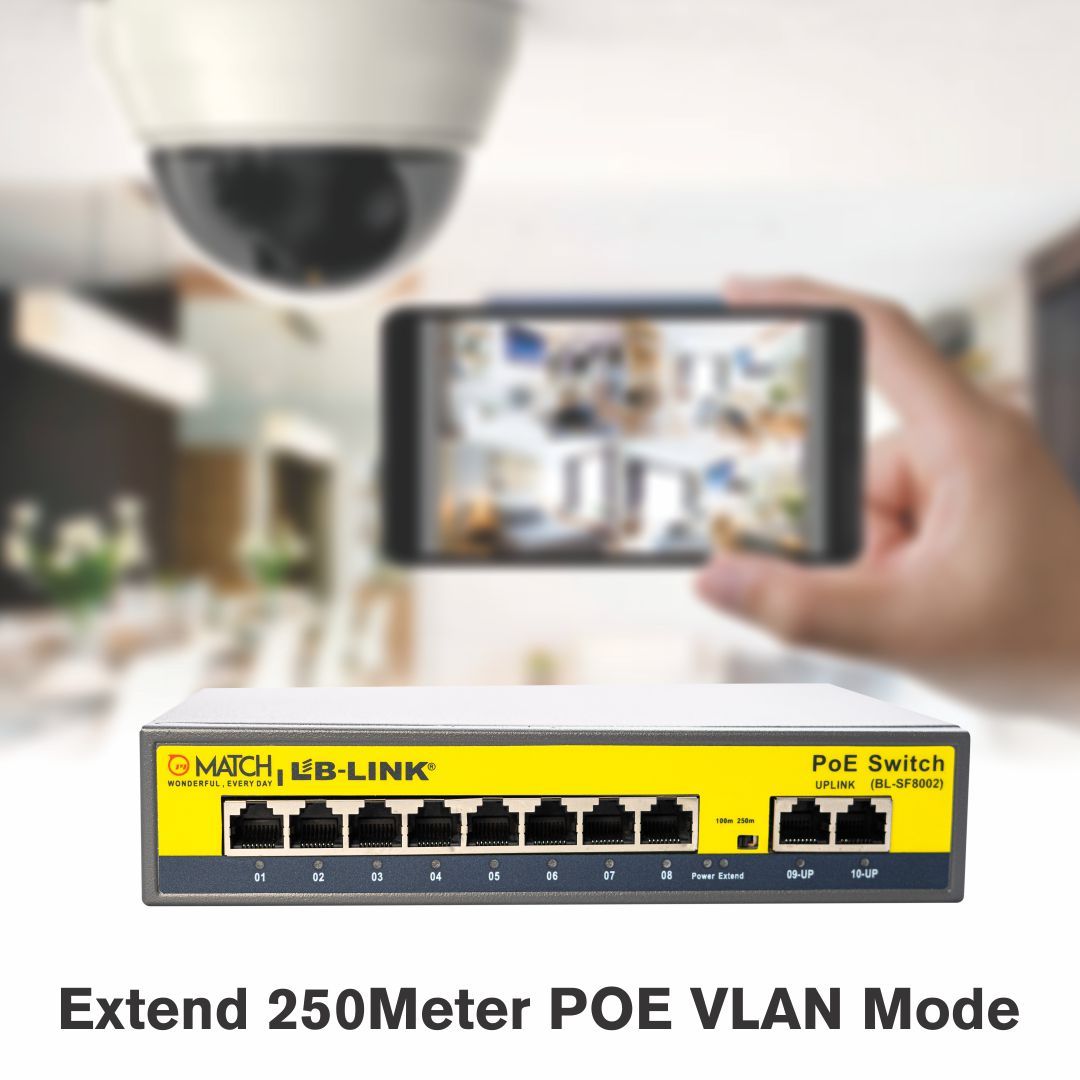

- switch Extend,1-4Port V-Lan on; cat 6 Cable Distance 250M; Data Rate 10Mbps
- Total PoE power budget: 104W, up to 30W per port
- Compact Design Fits Easily in WLAN Access
- Easy installation and maintenance
| TECHNICAL SPECIFICATION | |
| Standards | IEEE 802.3 10-BASE-T (Ethernet) |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | |
| IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet | |
| PoE Specifications | PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity |
| PoE over current protection | |
| PoE circuit sorting protection | |
| PoE Power Output: Per Port 52V DC, Max. 30 watts | |
| (IEEE 802.3af/at) | |
| Power Budget: Max. 104W | |
| Power Pin Assignment: 1/2(+), 3/6(-) | |
| Transmission Media | 10 BaseT Cat 6 UTP/STP |
| 100M BaseTx CAT 6 UTP/STP | |
| Filtering/Forwarding Rates | 100Mbps port-148,000pps |
| 10Mbps port-14,880pps | |
| LED Indicators | Per Port: Link/Act((Green), |
| PoE Port:PoE in use(Orange) | |
| Power:PWR(Orange) | |

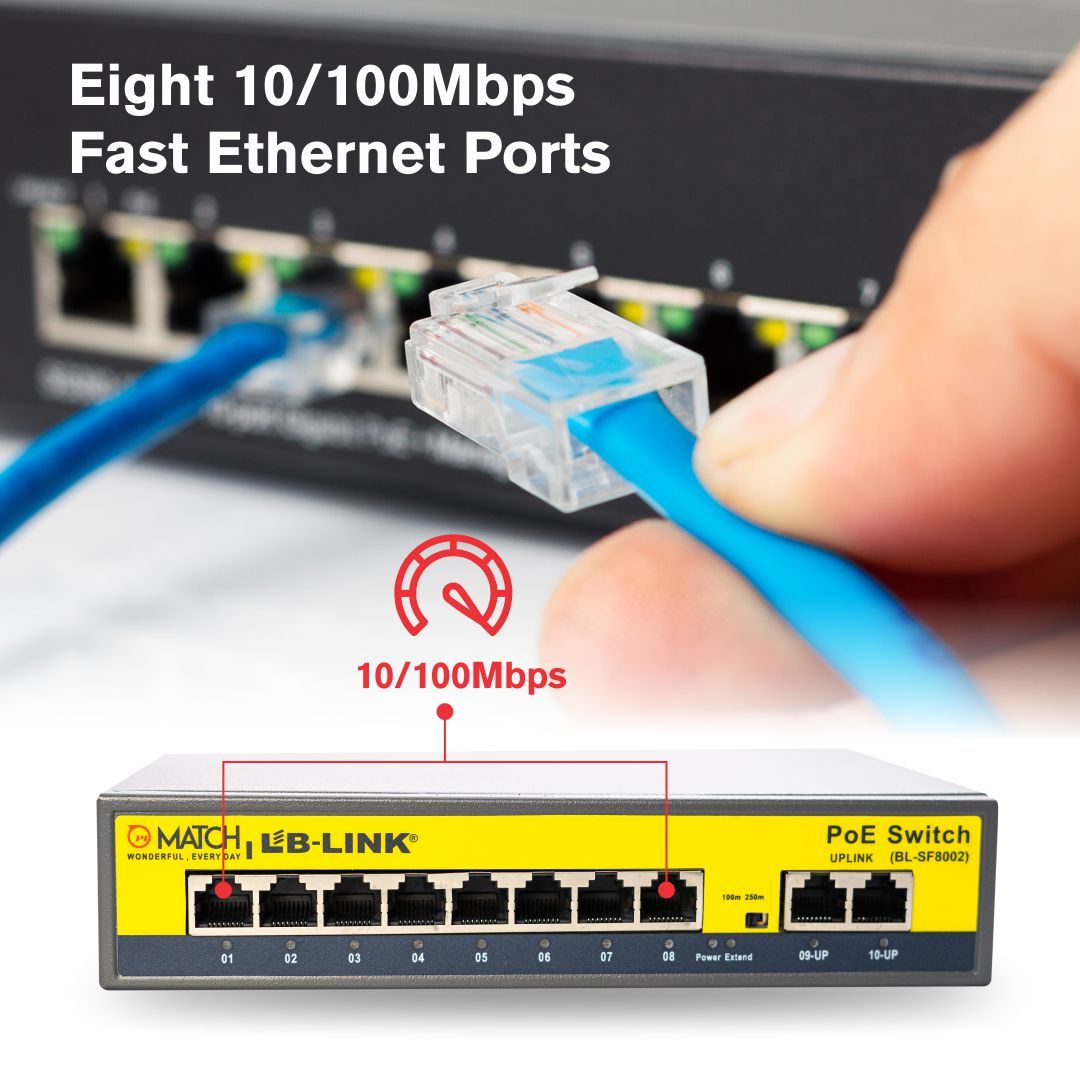

| Network Interface | 8 x 10/100Mbps RJ-45 PoE 1~4 Ports |

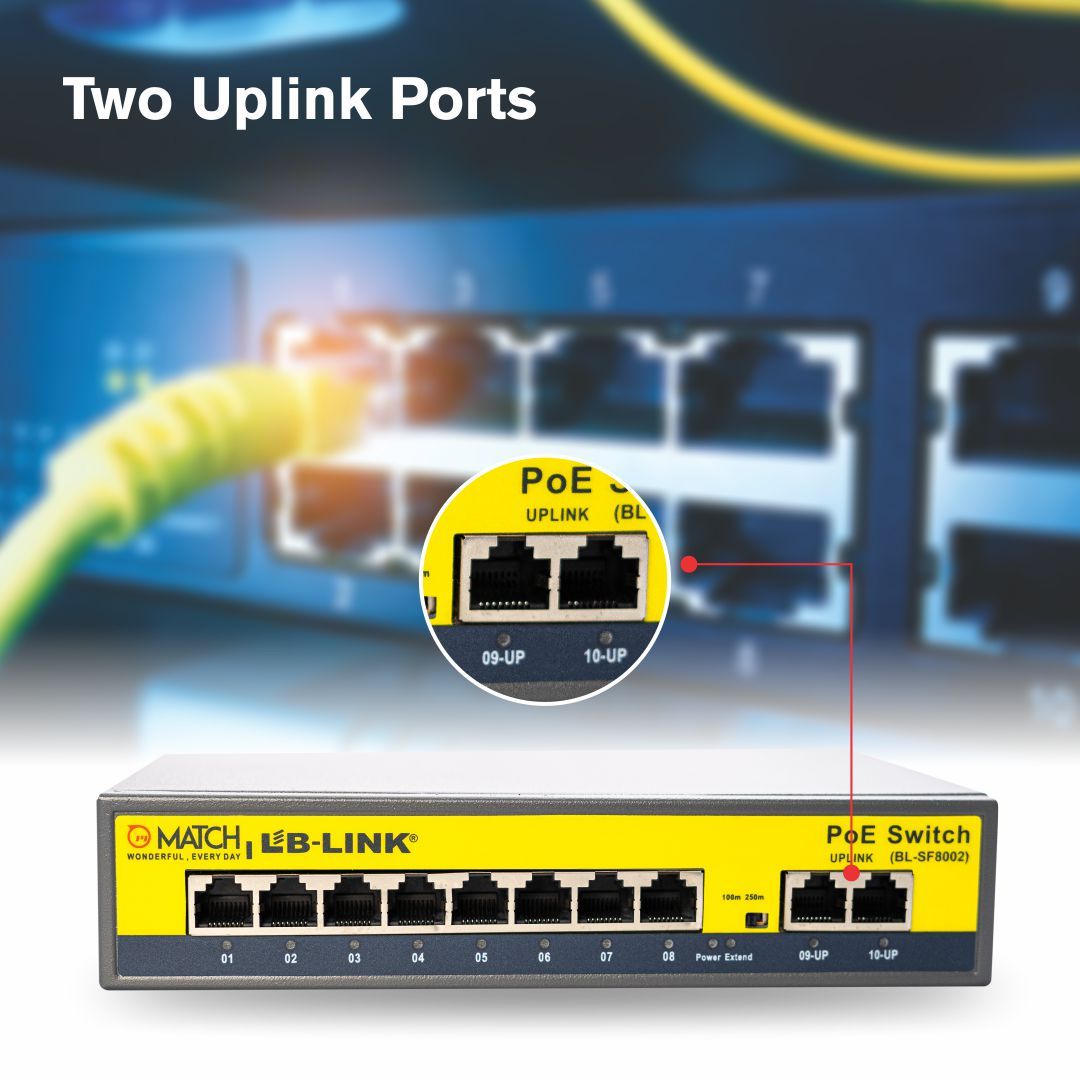

| 2x 10/100Mbps RJ-45 Uplink 5~6 Ports | |
| Extend/ON | 1-8Port 10Mbps POE+Vlan 250M ;5~6Port 10/100Mbps |
| Power Input | Input: 100-240V/AC, 50-60 Hz, 1A Internal Power Supply |
| Power Consumption | 65Watts(Max) |
| Dimensions: (L x W x H) / Weight | 185*124*44mm /1kg |
| Temperature | Operating: -5 ~ 45°C Storage: -20~70°C |
| Humidity: 10~90%, Non-condensing | |
| Certifications | CE/FCC |
