Gigabit PoE Injector | Match

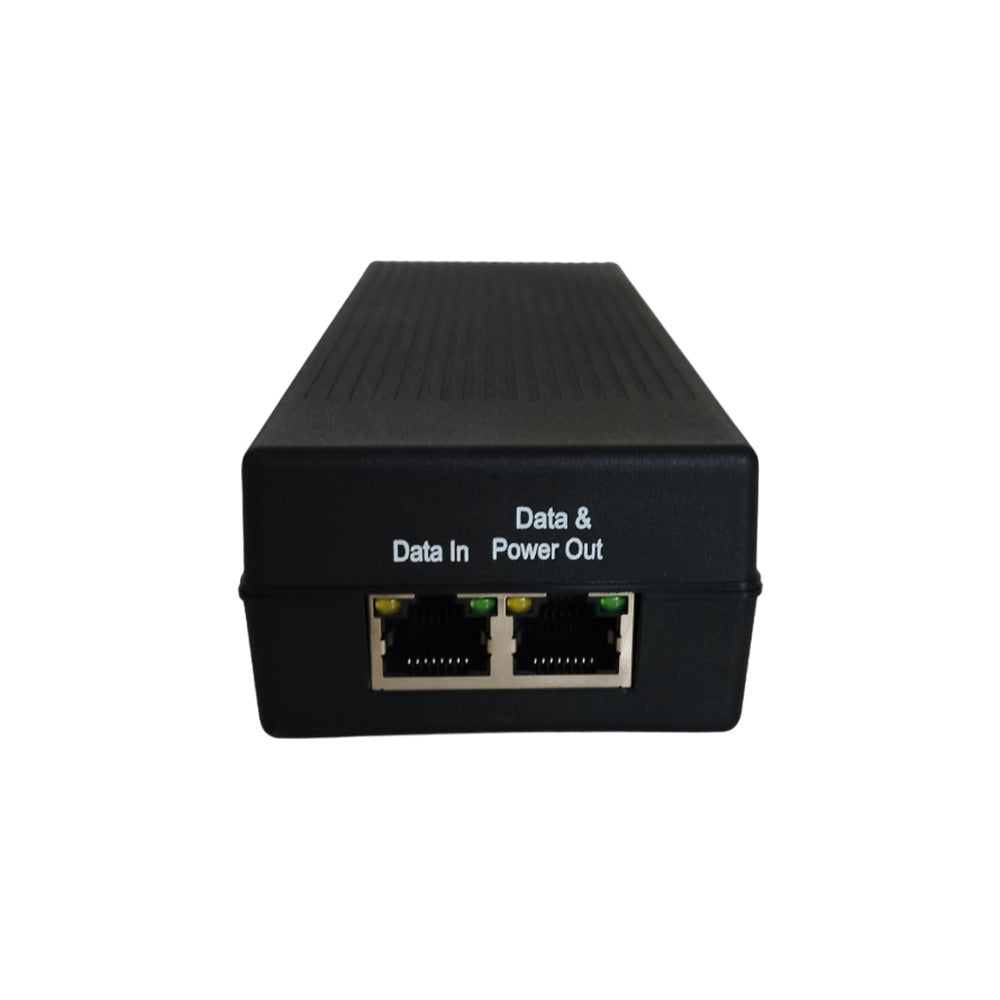

The Gigabit PoE Injector (MPSE803) is a high-performance single-port power supply device, fully compliant with the IEEE 802.3af/at standard. It efficiently delivers power over the network cable, supporting impressive transmission rates of 10/100/1000M up to 100 meters. This injector is equipped with a common network input port, a dedicated PoE output port, and an AC power input port.

Compatible with both mid-span and end-span connection methods, the MPSE803 seamlessly integrates network data signals with PoE power supply, offering a maximum output of 30W. This makes it an ideal choice for powering Ethernet devices such as wireless APs, VoIP phones, IP cameras, LED intelligent lighting, digital signage, and more. By adhering to the IEEE802.3af/at standard, it enables reliable PoE power supply and network transmission applications.

Key Features:

1. Compatible with IEEE 802.3 at power supply standard, supporting a maximum output power of 30W for high-power devices.
2. Supports 10/100/1000Mbps transmission rates, with a maximum transmission distance of 100m.
3. Provides high-level protection, suitable for diverse and challenging environments, including overvoltage, under voltage, overcurrent, and short circuit protection.
4. Surge protection: network port common mode ±6KV; static electricity (ESD): air ±8KV, contact ±6KV.
5. Boasts exceptional system reliability with a Mean Time Between Failures (MTBF) of over 100,000 hours.
6. Features a dustproof and silent design, ensuring reliable operation even in demanding conditions.
7. Easy to use with plug-and-play functionality, requiring no configuration.
