Media Converter-10/100 | Match LB-Link
BL-MC20SF100
10/100BASE-TX TO BASE-FX

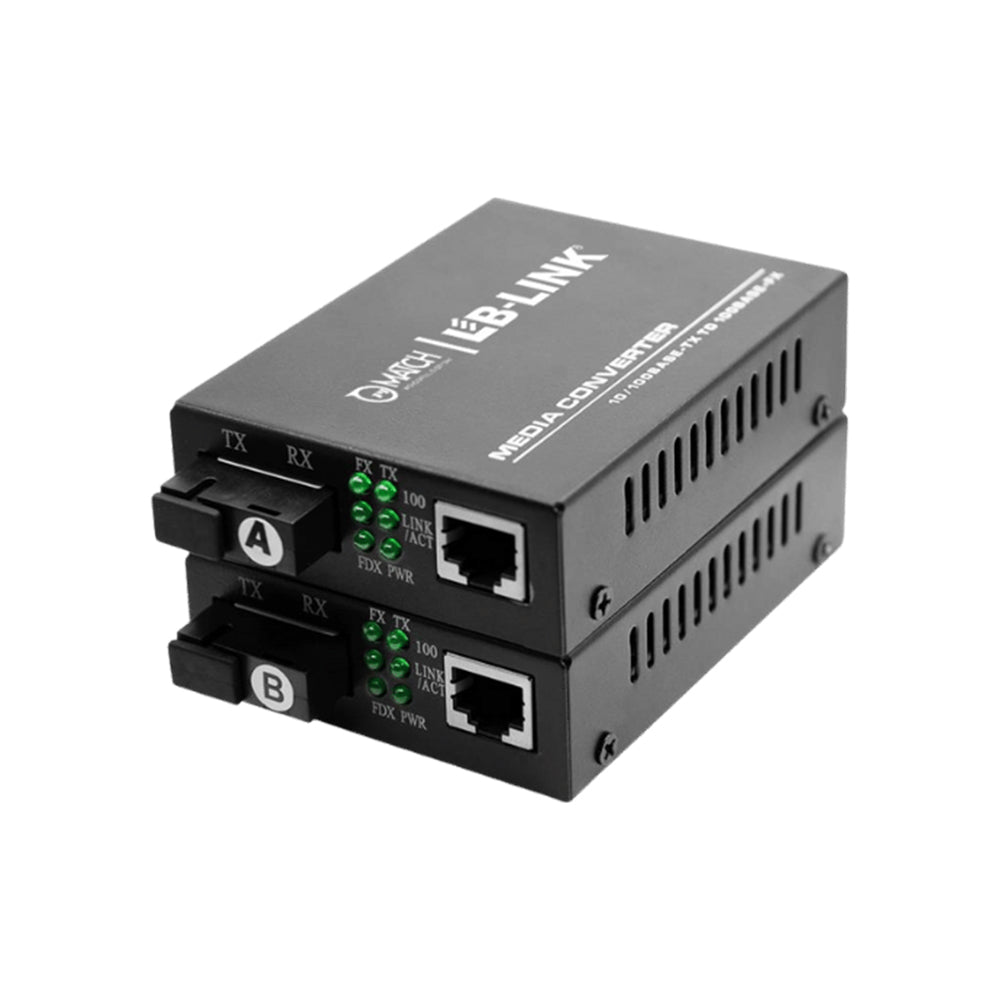

Match LB-Link's 10/100 Media Converter enables you to link fibre optic cable to twisted pair for supporting ethernet-compatible devices.
Main Features:
[ 10/100Mbps Fibre Ethernet Media Converter ]
MATCH LB-LINK 10/100 Mbps Adaptive Ethernet fiber converter using switching technology for media conversion, which meets the standards of IEEE802.3, 802.3u, 802.3x. It can conduct mutual conversion between 10Base-T/100Base-TX twisted-pair electrical signal.
[ Stable Transmission Without Losing Internet Speed ]

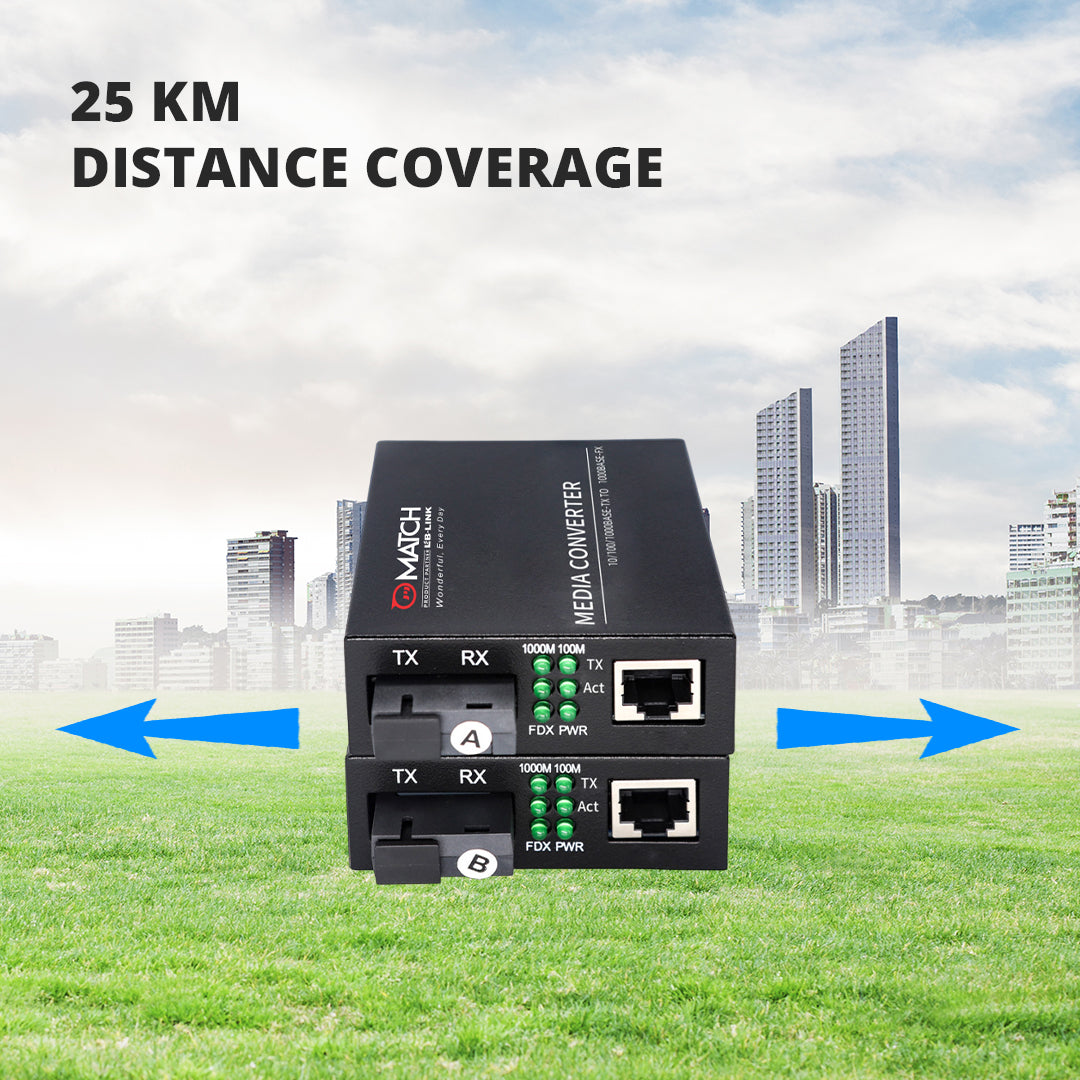

This Media Converter provides faster and more stable transmission can provide hot swappable power protection. It extends the transmission distance of a network from 100m over copper wires to 20Km.

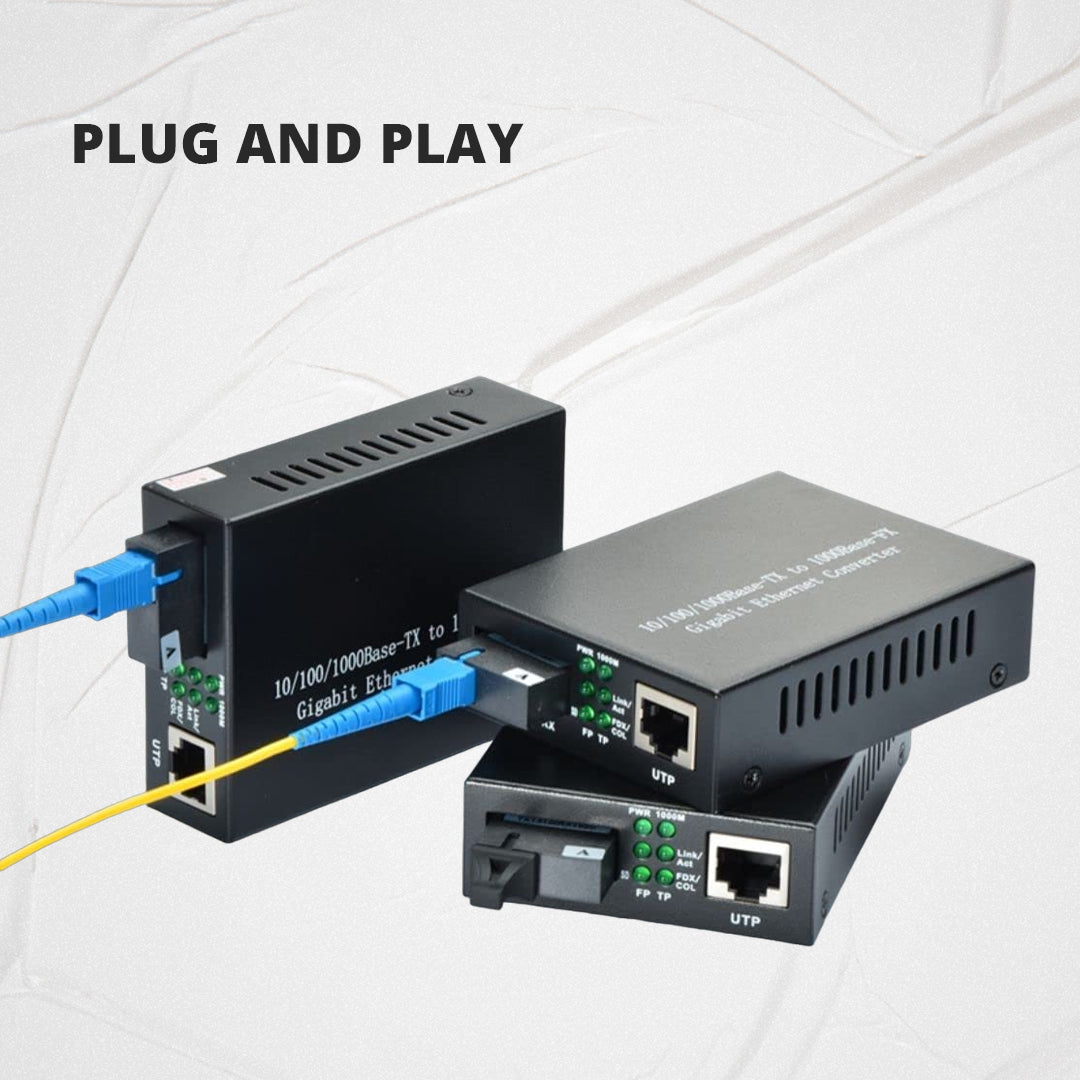

[ Easy Set up and Installation ]
It is very easy to set up this Media Converter. You need to just plug and play. This media converter provides average trouble-free usage of more than 50000 hours. It also accords with standard telecommunication level operation.

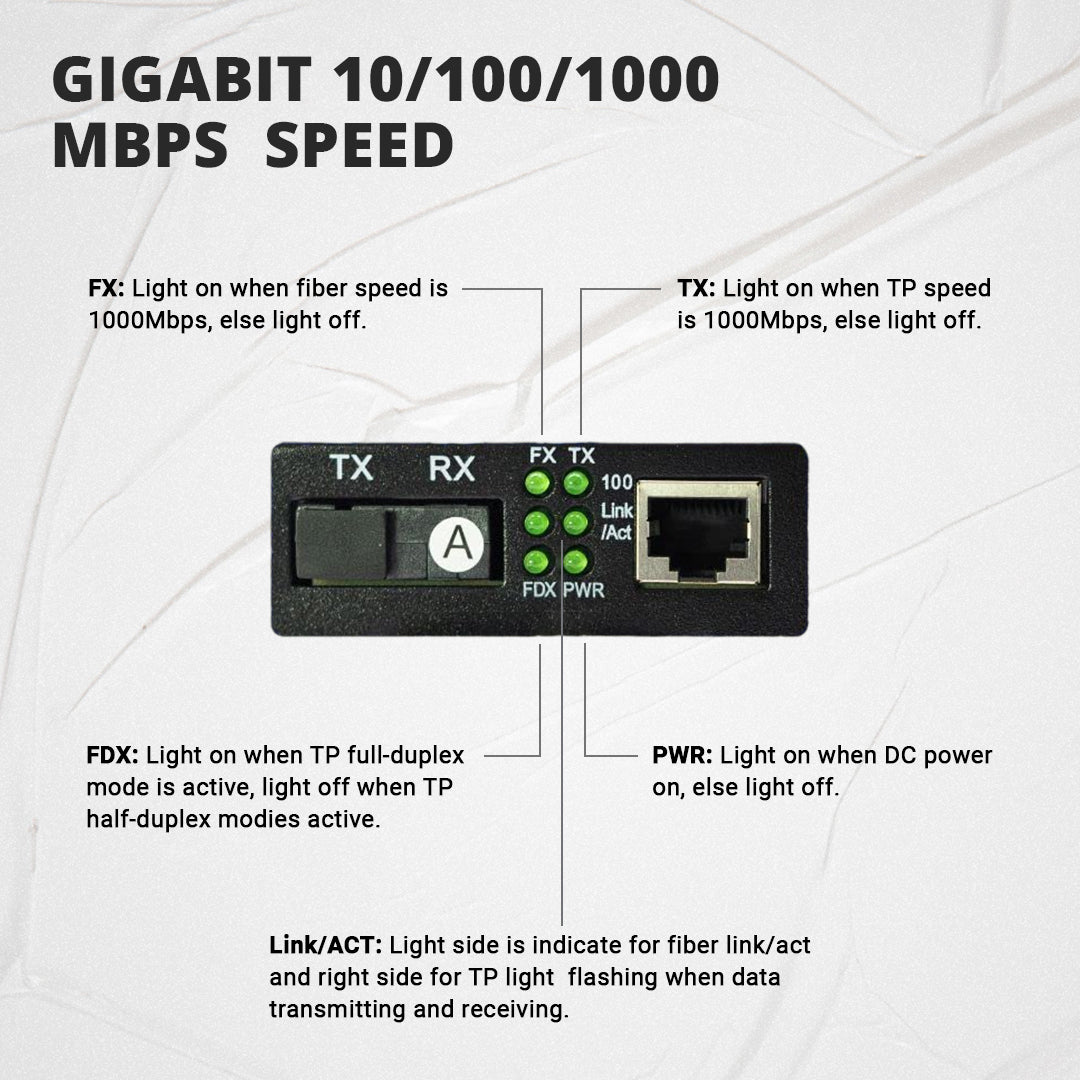

[ LED Indicators ]
It has LED indicators to know what is active in this 10/100Base TX to 100 Base FX bridging converter. It has active adopted four layers circuit structure, stable work, smooth data transmission, the anti-interference ability.
[ Other Features ]
* Supports SPANNING TREE structure fault-tolerant network
* Support hot swaps

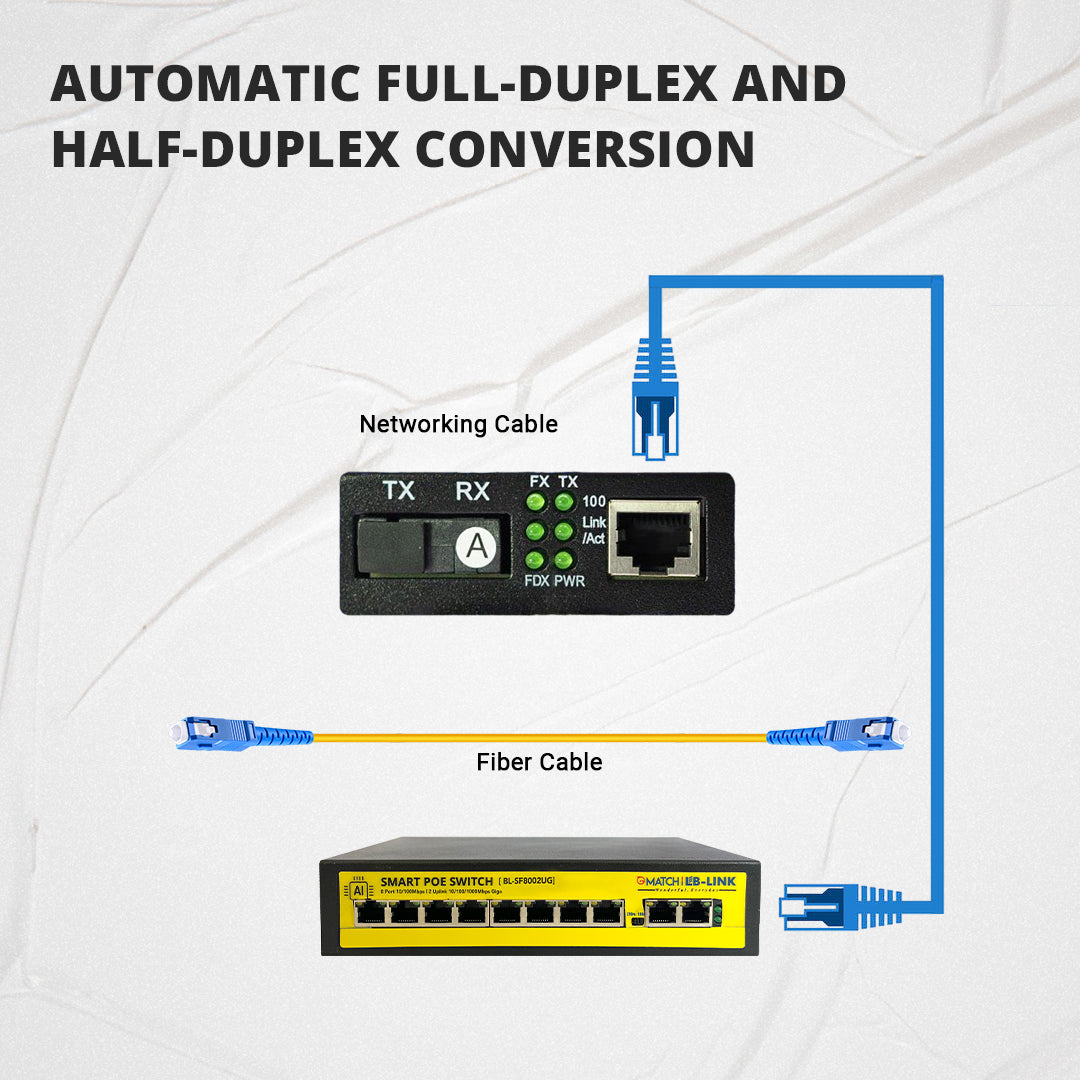

*Automatic full-duplex and half-duplex conversion
* With the German Siemens surface welding assembly lines processing
* Support optional light path failure monitoring function, report switch network management.
| Technical Specification | ||
| 100 BaseFX | ||
| Band Width | IEEE802.3,802.3u,802.3x | |
| RJ 45 Port | 10/100 BaseT(X) | 10/100/1000 Base T(X) |
| Wavelength | 850nm/1310nm/1550nm | |
| Fibre Port | 100BaseFX | |
| Optical Fibre | ||
| 100 BaseFX | ||
| Multi-Mode | Single-Mode | |
| Distance | 2km, 1310nm | 25km, 1310nm |
| Max | -20dBm | -10dBm |
| Min | -14dBm | -3dBm |
| Sensitivity | <-18dBm | <-30dBm |
| Power Requirements and Environmental Limits | ||
| 100BaseFX | ||
| Input Voltage | 5V | |
| Power | 5W | |
| Operating Temperature | -20 ~ +70°C | |
| Storage Temperature | -40-+85°C | |
| Ambient Relative Humidity | 5-95% (non-condensing) | |
| Other Details | ||||
| 100BaseFX | ||||
| Internal power supply | With 2 RJ-45 | External power supply | With 4 RJ-45 | |
| Dimensions (mm) | 94x70x25 | 140x110x30 | 215x110x30 | |
| Weight(g) | 148 | 400 | 666 | |
| Out carton Dimensions(mm) | 240x120x58 | 230x160x70 | 295x175x95 | |
| Out carton Weight(g) | 396 | 685 | 1055 | |
