Media converter Gigabit 10/100/1000
Gigabit Media Converter- 10/100/1000 | Match LB-Link

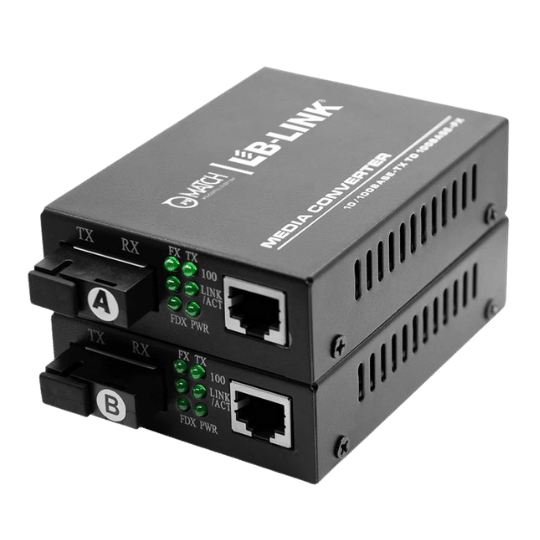

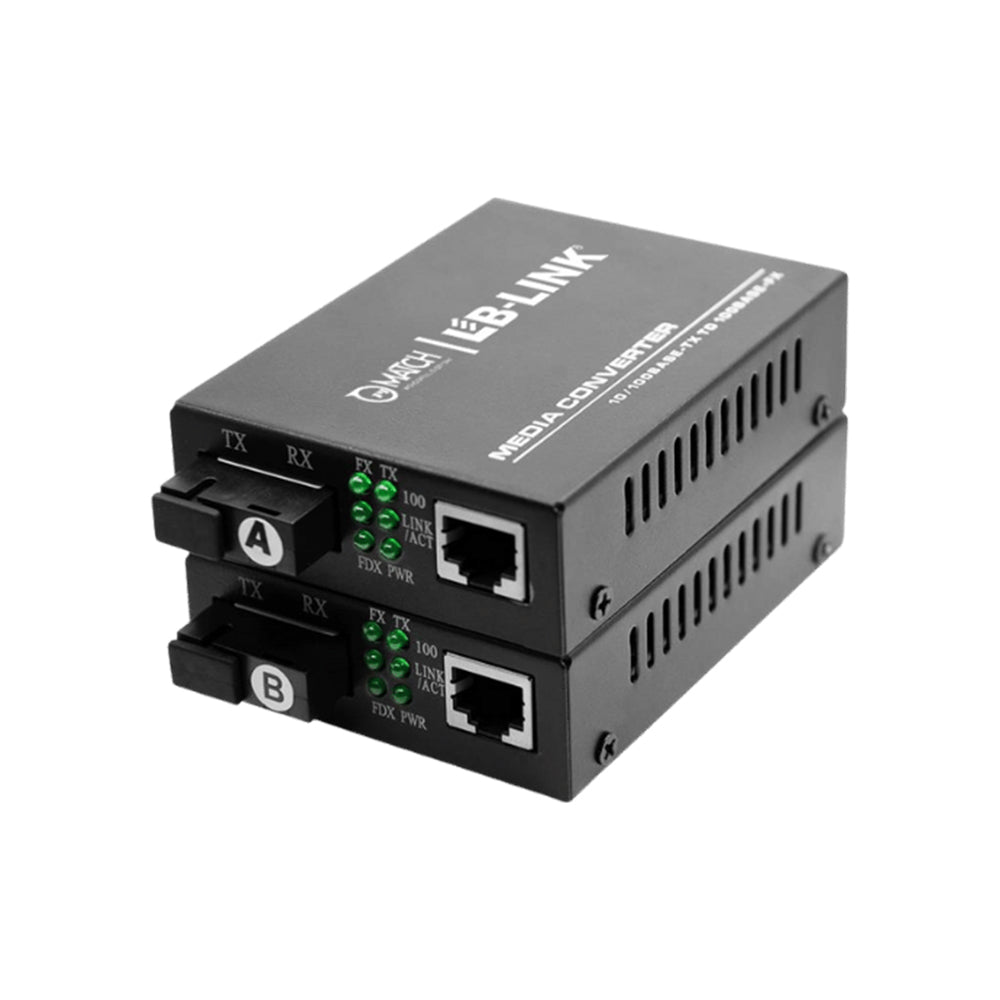

BL-MC20SFG
10/100/1000 BASE-TX TO 1000 BASE FX
Match LB-Link's Gigabit Media Converter 10/100/1000 enables to connect two dissimilar networks. It is used to link fiber optic cable to twisted pair for supporting ethernet-compatible devices.
[ Gigabit 10/100/1000Mbps Speed ]
This Gigabit media converter provides the fastest speed of 10/100/1000Mbps. It supports which meets the standards of IEEE802.3, 802.3u, 802.3x.
It can conduct mutual conversion between 10Base-T/100Base-TX twisted-pair electrical signal.
It can conduct mutual conversion between 10Base-T/100Base-TX twisted-pair electrical signal.
[ Auto Negotiation ( 802.3ab) ]
Match LB-Link Gigabit media converter supports auto negotiation of Automatic full-duplex and half-duplex conversion.
[ Fast and Stable transmission ]
This Media Converter provides faster and more stable transmission. Also, It can provide hot swappable power protection. It extends the transmission distance of a network from 100m over copper wires to 20Km.
[ Easy Set up and Installation ]
It is very easy to set up this Media Converter. You need to just plug and play. This media converter provides average trouble-free usage of more than 50000 hours. It also accords with standard telecommunication level operation.
[ LED Indicators ]
It has LED indicators to know what is active in this 10/100Base TX to 100 Base FX bridging converter. It has active adopted four layers circuit structure, stable work, smooth data transmission, the anti-interference ability.
[ Other Features ]
* Supports SPANNING TREE structure fault-tolerant network
* Support hot swaps
*Automatic full-duplex and half-duplex conversion
* With the German Siemens surface welding assembly lines processing
*Make in India with 3 Years of warranty
* Support hot swaps
*Automatic full-duplex and half-duplex conversion
* With the German Siemens surface welding assembly lines processing
*Make in India with 3 Years of warranty
| Technical Specification | ||
| 100 BaseFX | 1000 BaseFX | |
| Band Width | IEEE802.3,802.3u,802.3x | |
| RJ 45 Port | 10/100 BaseT(X) | 10/100/1000 Base T(X) |
| Wavelength | 850nm/1310nm/1550nm | |
| Fibre Port | 100BaseFX | |
| Optical Fibre | |||||
| 100 BaseFX | 1000BaseFX | ||||
| Multi-Mode | Single-Mode | Multi-Mode | Single Mode | ||
| Distance | 2km, 1310nm | 25km, 1310nm | 500m, 850nm | 2km, 1310nm | 25km, 1310nm |
| Max | -20dBm | -10dBm | -10dBm | -10dBm | -10dBm |
| Min | -14dBm | -3dBm | -3dBm | -3dBm | -3dBm |
| Sensitivity | <-18dBm | <-30dBm | <-18dBm | <-18dBm | <-22dBm |
| Power Requirements and Environmental Limits | ||
| 100BaseFX | 1000BaseFX | |
| Input Voltage | 5V | |
| Power | 5W | |
| Operating Temperature | -20 ~ +70°C | |
| Storage Temperature | -40-+85°C | |
| Ambient Relative Humidity | 5-95% (non-condensing) | |
| Other Details | 100BaseFX | 100BaseFX | ||||
| Internal power supply |
With 2 RJ-45 |
External power supply | With 4 RJ-45 | Internal power supply | External power supply | |
| Dimensions (mm) | 94x70x25 | 140x110x30 | 215x110x30 | 94x70x25 | 140x110x30 | |
| Weight(g) | 148 | 400 | 666 | 148 | 400 | |
| Out carton Dimensions(mm) | 240x120x58 | 230x160x70 | 295x175x95 | 240x120x58 | 230x160x70 | |
| Out carton Weight(g) | 396 | 685 | 1055 | 396 | 685 | |
DOWNLOAD
Check Out the Media converter with 100 Base FX.
